Guide to Door Reversal
IMPORTANT: Please make sure all parts removed are kept properly so that you can reverse the door again if necessary.
Procedure:
- Detach the bottom hinge plate (3) from the fridge by removing the four locking screws (1) . Please hold the door firmly after screws are removed.
- Gently pull down to remove the door from the right top hinge piece (5) and place it on a padded surface to avoid the risk of damage.
- Transfer the cover caps (6) and (7) on the door to cover the holes (8) and (9).
- Detach the top right hinge piece (5) from the fridge by removing the locking screws (4).
- Transfer the locking screws for the top hinge piece (11) right top holes.
- Install the hinge plate (3) to the opposite side.
- Place the axes (2) on the hinge plate and put the door on it.
- Attaching the top left hinge (10) and all the fittings to the body of the fridge by locking screw onto the left hand side of fridge and tighten it after the door is leveled.

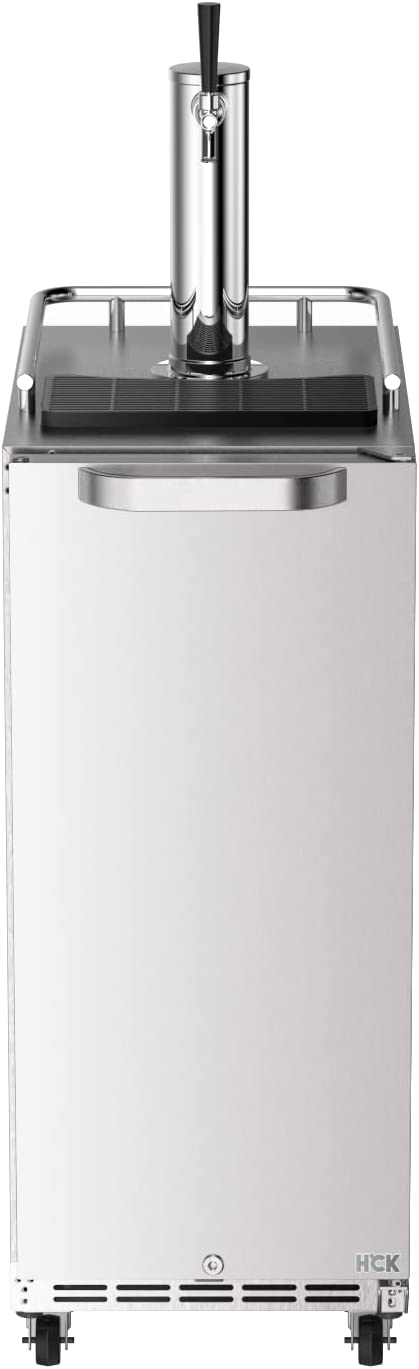

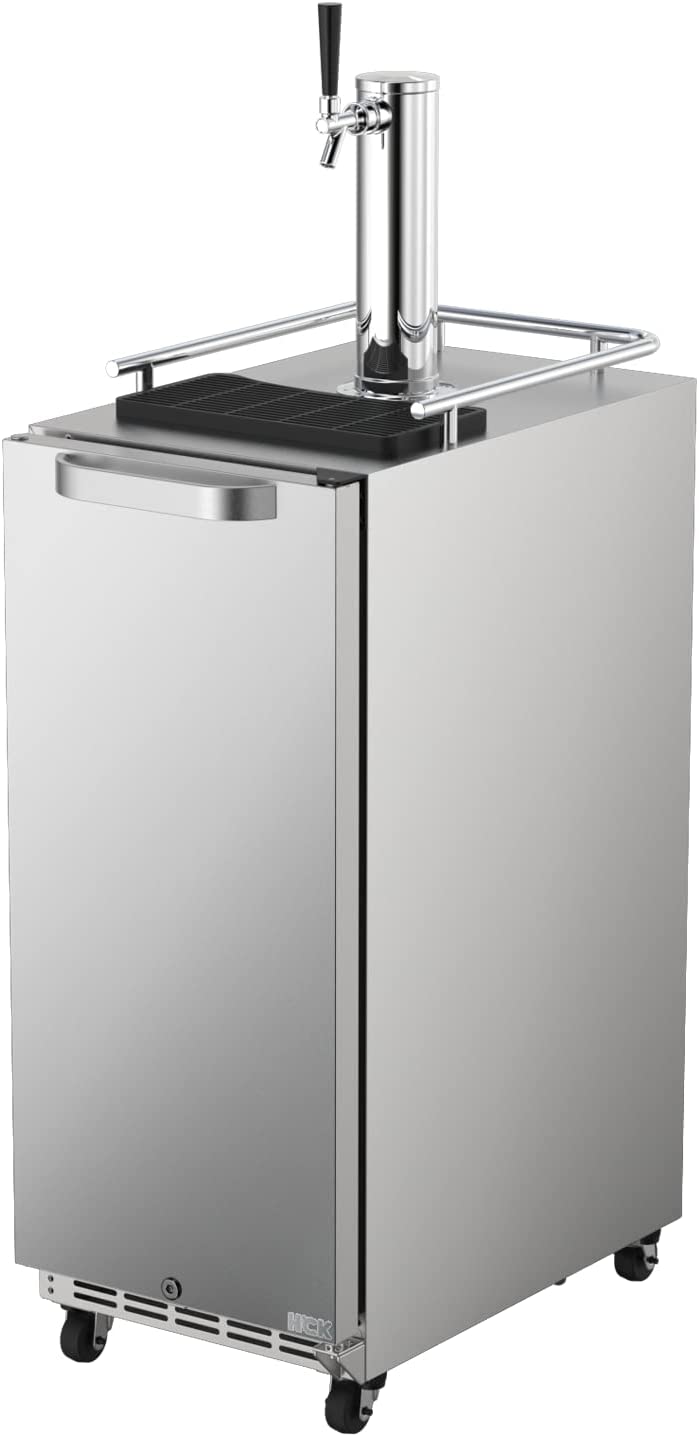

15 Inch Single Tap KegeratorItem Weight 85.6 pounds
Product Dimensions 23.62 x 14.88 x 34 inches
Capacity 3.18 Cubic Feet

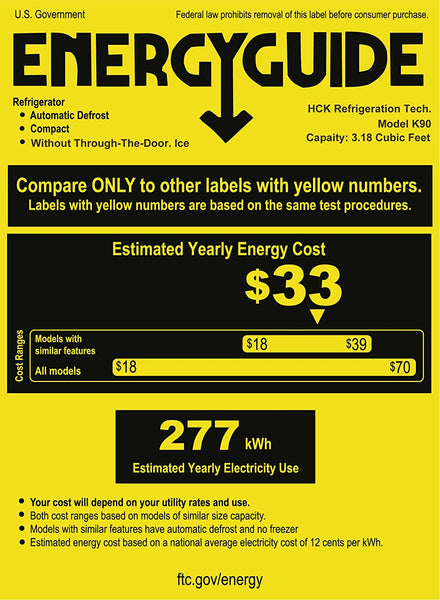

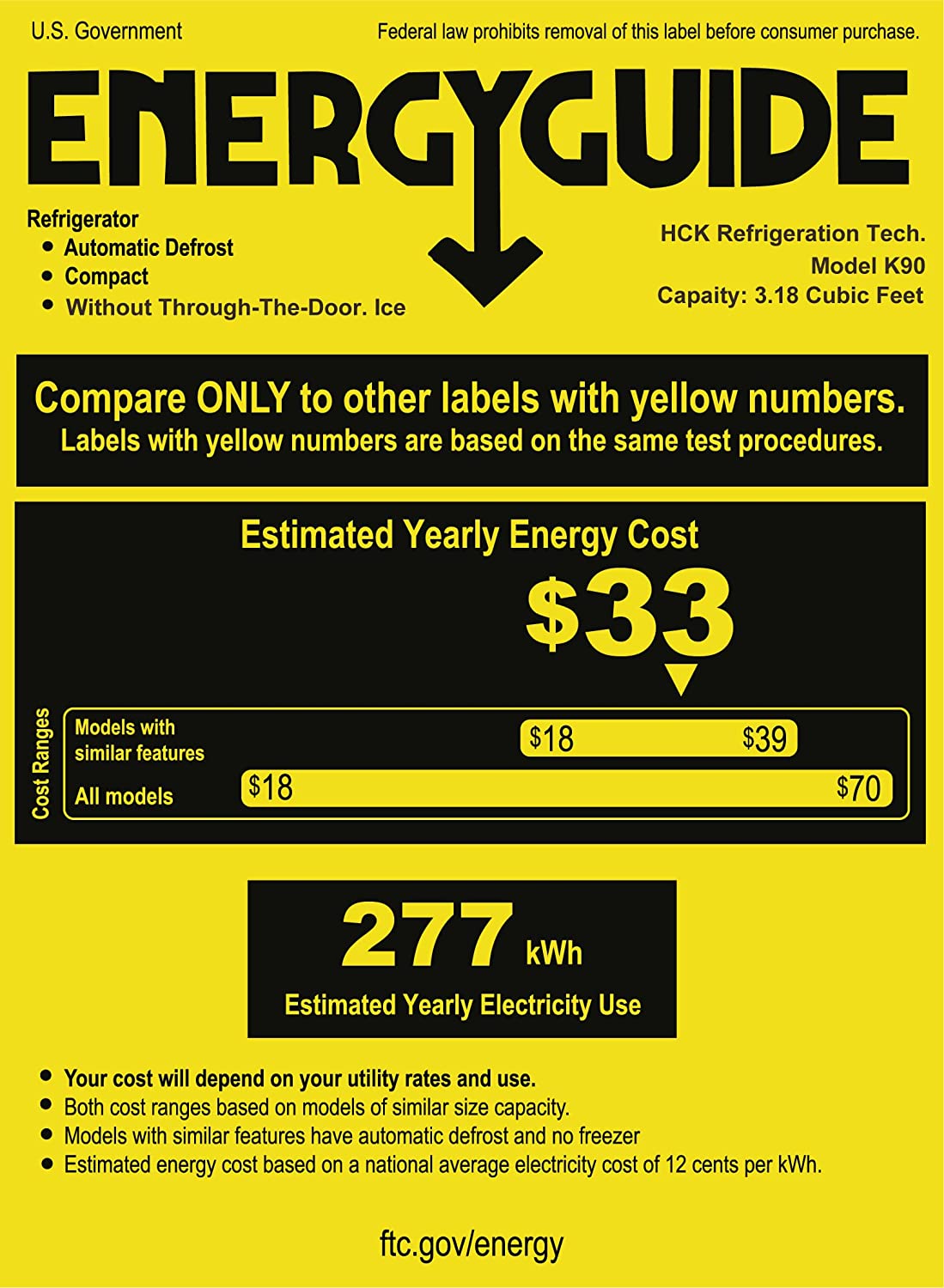

Annual Energy Consumption 277 Kilowatt Hours Per Year
Refrigerator Fresh Food Capacity 3.18 Cubic Feet
Noise 42 dB
Installation Type Undercounter
Form Factor Mini Fridges
Special Features Door Lock
Drawer Type Refrigeration
Voltage 110 Volts (AC)
Wattage 110 watts
Defrost Automatic
Door Hinges Reversible
Door Material Type Stainless Steel
Shelf Type Wire
Shelves 3
Certification ETL, DOE

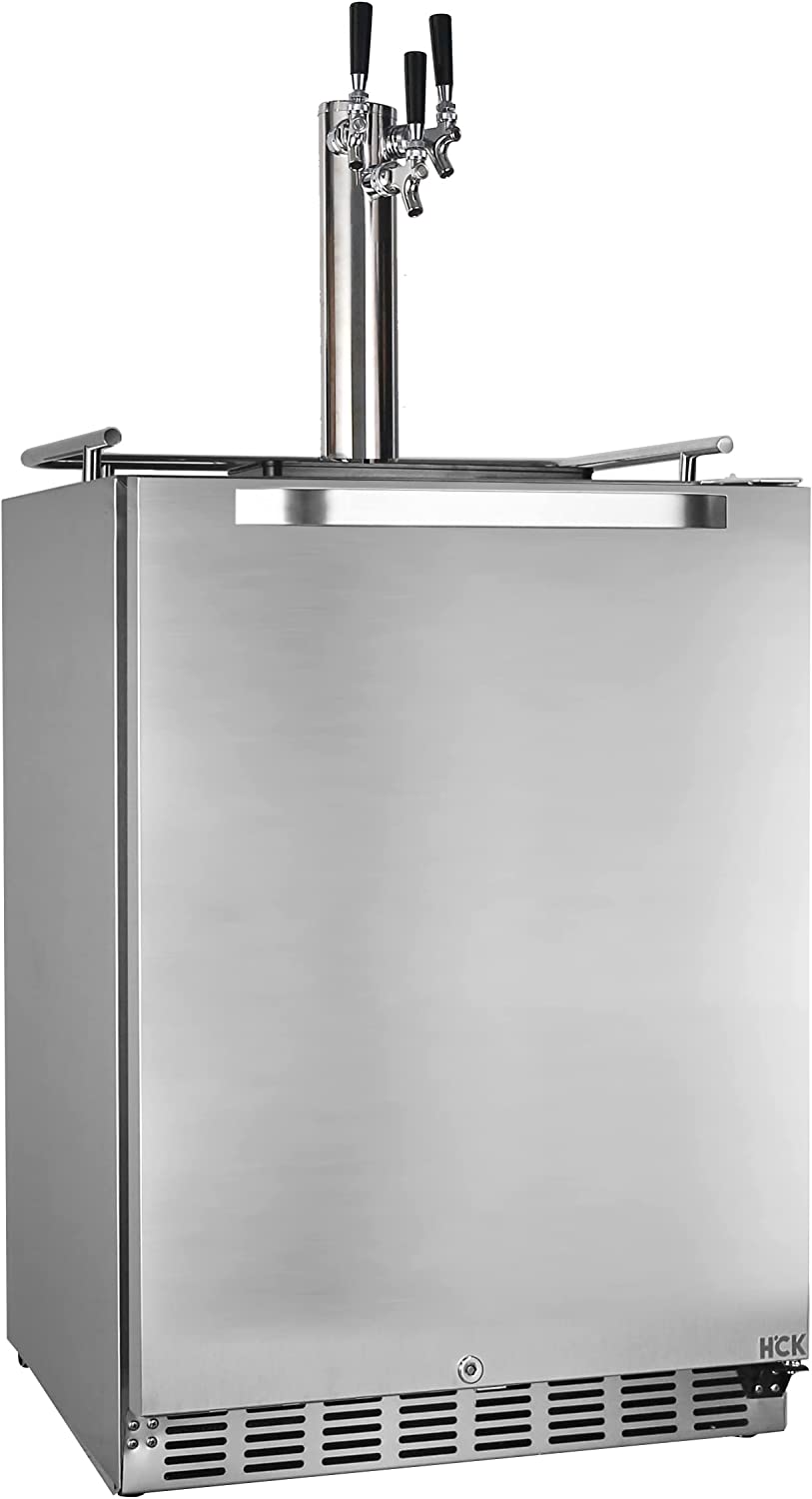

24 Inch Triple Tap KegeratorItem Weight 120.7 pounds
Product Dimensions 23 x 24 x 34 inches
Efficiency High Efficiency
Capacity 6.04 Cubic Feet
Annual Energy Consumption 310 Kilowatt Hours Per Year
Refrigerator Fresh Food Capacity 6.04 Cubic Feet
Noise 45 dB
Installation Type Under-Counter
Form Factor Built-In
Color Silver
Voltage 110 Volts (AC)
Wattage 110 watts
Defrost Automatic
Door Hinges Reversible
Door Material Type Stainless Steel
Shelf Type Wire
Shelves 3
Certification ETL, DOE
